LIVA Lightning Rods
[ +zoom ]

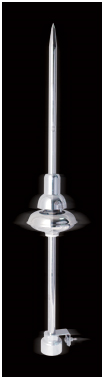

LAP BX-175 หัวล่อรัศมีป้องกัน 100 เมตร
รหัสสินค้า : LAP BX-175
หัวล่อฟ้าแบบ early streamer emision รุ่น LAP BX-175
รัศมีป้องกัน 100 เมตร ที่ระดับการติดตั้งเสาสูง 6 เมตร Level 2
LIVA ACTIVE (E.S.E.) LIGTNING CONDUCTOR "LAP-BX 175 "
LIVA “LAP-BX 175
Active Lightning Rod“ operates on the principle of Early Streamer Emision(E.S.E.).
parts that are bearing the lightning were made out of stainless steel against (Inox) chemical interaction and corrosion.This feature provides solidity and endurance for the lightning rod against heavy natural conditions for a long time as it is on the first day.
WORKING SYSTEM: LAP-BX 175 LIVA Active Lightning Rod Head with Electro atmospheric Field Effect works on the principal of Early Streamer Emission (E.S.E.) and gets its energy from the changes of electrostatic and electromagnetic field density that form in the air.The air terminal -as it is seen on the picture- is grounded, insulated from the middle shaft,and on the contrary it has a High-tension Stroke Generator with free potential.
Electric field power in the atmoshere rises up to 10 – 20 kV/m in conditions orage clouds form with dense electric charge.When the electric field reaches values at which lightning may fall because of orage clouds (above 50 kV/m), lightning rod air terminal stores this energy by courtesy of Electroatmospheric Energy Block and starts to form high-tension strokes in quick succession.These strokes expose ions by discharging into the ion tunnel by way of three ion electrodes.Ions spreading towards orage loaded clouds from the ion tunnel form a leading charge path between the head and a cloud. When electric field diffusion has changed or electric field power has increased, the leading discharge strokes that are rising from the air terminal and lowering from the cloud increase by growing.These strokes are the leading discharge strokes that provide the lightning rod to catch the lightning and it proceeds until the lightning will have been formed.
LAP-BX 175 Active Lightning Rod activates the electric field power between the cloud and the earth just in case of lightning risk by courtesy of high-tension stroke generator. This structure provides the energy block to send out ions at high level.
After the catching process has occured, LIVA Active Lightning Rod gets ready to start a new cycle.
FEATURES OF THE DEVICE
: “Stainless Steel” has been used in lightning rod head by thinking of heavy natural conditions.
Lightning Intercepting Rod:
A stainless steel 20 mm.in diameter portion that intercepts the lightning.
Electroatmospheric Energy Block:
The portion within the high-tension stroke generator that is dependant from the center shaft.
These are the electrodes that high-tension strokes which are produced in the high-tension stroke generator are provided by them to form ion.
Earthing Connection Electrode:
A stainless steel 20 mm.in diameter portion that transfers the electric load formed by lightning through terminal blocks to conducters and ground.
Pipe Connection Adapter
: A portion that lightning rod is connected to a 2’’-pipe without using any apparatus.
TESTS AND CERTIFICATES
LAP-BX 175 Active Lightning Rod has proved its quality by being undergone various tests in a laboratory environment.Tests are given below.
Lightning Strike Tension Jumping Time (
t) Test of the Lightning Rod:
The lightning rod
s lightning tension jumping (Early Streamer Warning) time (
t) has been tested by NFC 17-102 (Appendix C) standards in the High-tension Laboratory of METU Electric-Electronic Section on March 15-16, 2007 and the lightning rod has been certified to be suitable related standards.
Strike Tension High Current Strike (Short Circuit kA) Test of the Lightning Rod:
The lightning rod has been tested with 25kA-current strikes in the High-tension Laboratory of METU Electric-Electronic Section on June 15, 2007 and it has been certified that there are no changes or failures in its features.
